Products of High resolution Industrial LCD Display Module. - Download

•Higher resolution display designed for long term use at Industrial applications.
•Display with IPS, LVDS I/F, High brightness, Wide temperature range ..etc.
•Long life LED with built-in controller.

Product

6.4” XGA

7” WXGA

7.0” FHD

8” WXGA



8.8”HD

(Tentative)

10.1” WXGA

10.1” WUXGA

Outline (mm)



153x118x9.1



164.4x105x8.5



169x103x7.0



189x119.4x11.5



217.8x135.2x14.4



231x153.5x11.17



232.1x153.2x4.7



Resolution



1024x768



1280x768



1920x1080



1280x768



1280x720



1280x800



1920x1200



PPI



200



213



315



187



167



149



224



Interface



LVDS



LVDS



LVDS



LVDS



LVDS



LVDS



2-channel LVDS



Brightness (nits)



1400



1000



600



1000



800



1000



800



Contrast



800:1



1000:1



800:1



1000:1



1000:1



1500:1



800:1



Viewing angle



IPS



IPS



IPS



IPS



IPS



IPS



IPS



LED lifetime



70K



50K



40K



70K



70K



70K



40K



Operating Temp.

-30C ~ 80C

-40C ~ 85C

-20C ~ 70C

-30C ~ 85C

-30C ~ 85C

-30C ~ 85C

-30C ~ 80C

Storage Temp.

-30C ~ 80C

-40C ~ 90C

-30C ~ 80C

-40C ~ 90C

-40C ~ 90C

-40C ~ 90C

-30C ~ 80C

Products of Industrial Slim design LCD Module.

7 inch - 1920x1080 of Slim design Full HD TFT LCD display for industrial Portable and mobile device.

The first LCD manufacturers to introduce a compact, Full HD (1920 x 1080) display module developed specifically for industrial portable and mobile applications.
The TX18D204VM0BAA features a pixel pitch of 0.081mm (w) x 0.081mm (h),
equivalent to 314ppi (pixels per inch), Advanced IPS, 20-pin LVDS interface,long-life LED backlight and wide operating temperature range.
The 7.0-inch Full HD display module is the first in a series of high resolution
displays to be introduced.

IPS Technology

Features:Industrial Type, Slim design, IPS Technology and Long Term Supply.

Application: Rugged Mobile Laptop, Rugged Tablet PC, Rugged Computing, Military, Marine, Medical Tablet, Professional Video applications, Broadcast Monitors, Avionics and in-flight entertainment (IFE) LCD Monitor solutions.

Specification of 7inch 1920x1080 FULL HD LCD Display Module.

Part Number

TX18D204VM0BAA

LCD Module Dimensions

169mm(W) x 103mm(H) x 4.0mm(D) – {except PCB area}

LCD Active Area

155.52(W) x 87.48(H)

Dot Pitch

0.081(W) x 0.081(H)

Resolution

1920 x 1080 – 7inch Full HD

LCD Type

Transmissive type Color TFT; Normally Black

Backlight Lifetime

40Khrs LED backlight

Interface

LVDS; 1 channel; 20 pins

Viewing Direction

85/85/85/85; Super Wide Version – IPS Technology

Brightness

600

Contrast

800

Operating Temperature

-20~70 degree C

Storage Temperature

-30~80 degree C

RoHS compliance

Yes

※ Please contact us when you are interested in this 7inch Full-HD slim type LCD Module.  sales@gtc-tw.com

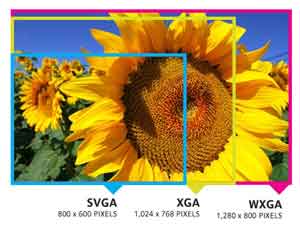

8 inch - 1280x768 of Slim design WXGA TFT LCD display for industrial Portable and mobile device.

wxga

Features:Industrial Type, Slim design, High brightness and Long Term Supply.

Application: Rugged Mobile Laptop, Rugged Tablet PC, Rugged Computing, Military, Marine, Medical Tablet, Professional Video applications, Broadcast Monitors, Avionics and in-flight entertainment (IFE) LCD Monitor solutions.

Specification of 8.0 inch WXGA LCD Display Module.

Part Number

TX20D201VM2BAB

Module Dimensions

189mm(W) x 120mm(H) x 4.7mm(D) – {except PCB area}

LCD Active Area

173.76(W) x 104.26(H)

Dot Pitch

0.13575 x 0.13575

Resolution

1280 x 768 – 8.0inch WXGA

LCD Type

Transmissive Type Color TFT; Normally Black

Backlight Lifetime

50Khrs LED backlight

Interface

LVDS; 1 channel; 20 pins

Viewing Angle

70/70/50/60

Brightness

900

Contrast

600

Operating Temperature

-30~80 degree C

Storage Temperature

-30~80 degree C

RoHS compliance

Yes

※ Please contact us when you are interested in this 8.0inch WXGA slim type LCD Module.  sales@gtc-tw.com

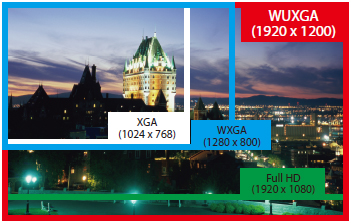

10.1 inch - 1920x1200 of Slim design WUXGA TFT LCD display for industrial Portable and mobile device.

wuxga IPS Technology

Features:Industrial Type, Slim design, High brightness, IPS Technology and Long Term Supply.

Application: Rugged Mobile Laptop, Rugged Tablet PC, Rugged Computing, Military, Marine, Medical Tablet, Professional Video applications, Broadcast Monitors, Avionics and in-flight entertainment (IFE) LCD Monitor solutions.

Specification of 10.1 inch WUXGA LCD Display Module.

Part Number

TX26D202VM0BAA

Module Dimensions

232.1mm(W) x 153.2mm(H) x 4.7mm(D) – {except PCB area}

LCD Active Area

217.44(W) x 135.9(H)

Dot Pitch

0.11325 x 0.11325

Resolution

1920 x 1200 – 10.1inch WUXGA

LCD Type

Transmissive Type Color TFT; Normally Black

Backlight Lifetime

40Khrs LED backlight

Interface

LVDS; 2 channels; 50 pins

Viewing Direction

85/85/85/85; Super Wide Version – IPS Technology

Brightness

800

Contrast

800

Operating Temperature

-30~80 degree C

Storage Temperature

-30~80 degree C

RoHS compliance

Yes

※ Please contact us when you are interested in this 10.1inch WUXGA slim type LCD Module.  sales@gtc-tw.com
